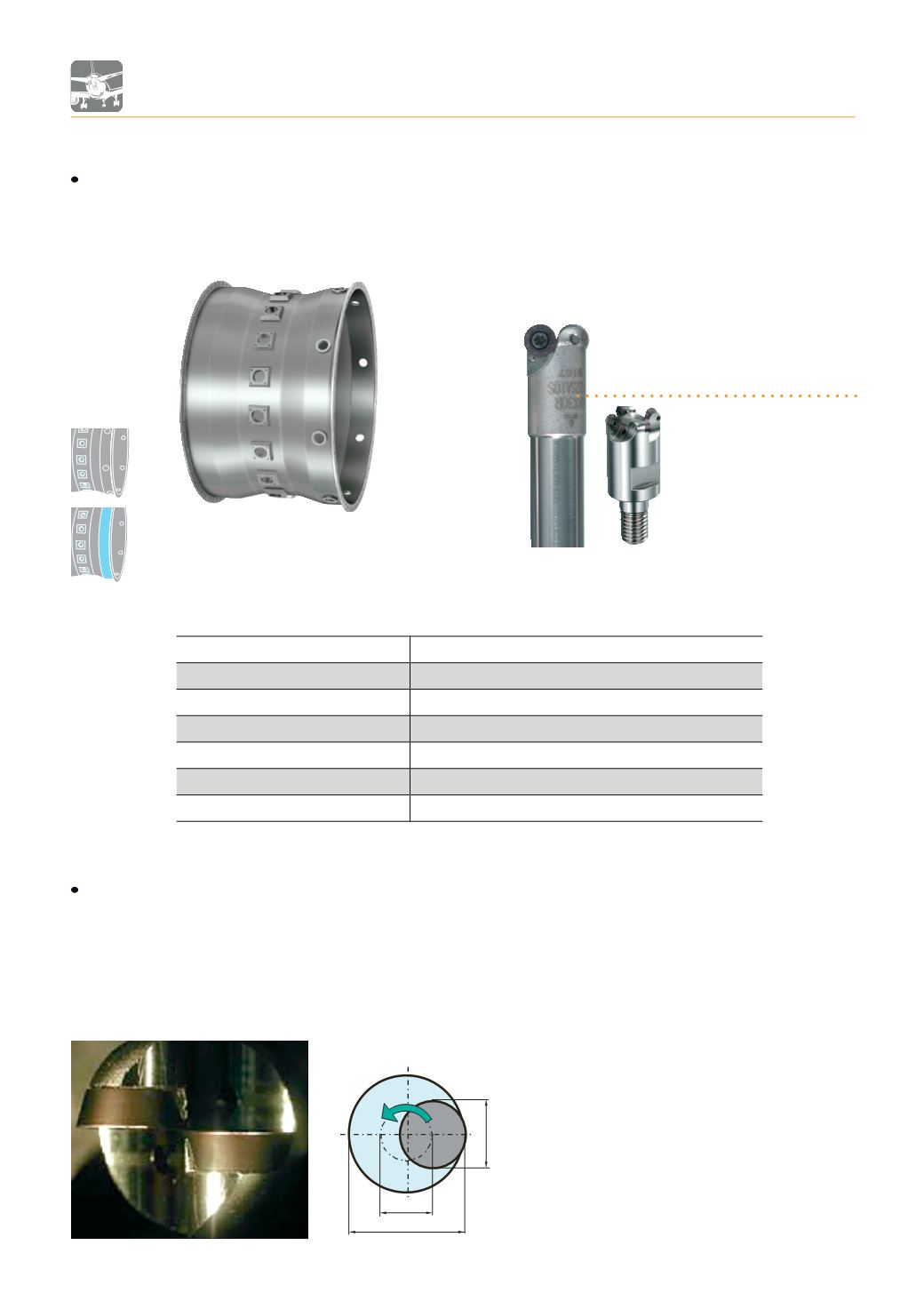

23
ARX
øDH
ødc
øD
1
VB: 0.08 mm
Holder
ARX35R142SA12S
Insert (Grade)
RDMW0724M0E (VP15TF)
Work Material
Inconel
®
718
Cutting Speed
vc30 m/min
Feed
f0.2 mm/rev (Helical Cutting)
Hole Depth
20 mm (1 mm/rev), Hole dia. 25 mm
Coolant
Emulsion
• Helical Cutting
• Setting a tool's centre excursion
Tool's
centre
excursion
Required
bore
diameter
Tool's cutting
diameter
Helical Cutting, Profile
Milling
ENGINE
Work Material [Ni-based Superalloy]
Key Point on Machining
For machining of flanges on the outer side of the engine cases, helical machining with a small
diameter radius end mill is effective. ARX end mills deliver an excellent machining
performance when profile machining the outer flanges.
Application Example
Large holes in heat resistant super alloys are machined using helical interpolation with
small diameter radius end mills.
Multifunction
Further use is possible because of reduced tool wear. (after 7 min. machining)
ødc = øDH - øD1
