34
iMX
30
0
60
90
2D
øD
ae 5-20 mm
ap 30 mm
Head (Grade)
IMX20C4HV200R10040 (EP7020)
Length of cutting edge 2D/ Non-stocked item
Holder
IMX20-U20N070L130C
Overhang length
125 mm
Work Material
Ti-5Al-5Mo-5V-3Cr
Cutting Speed
vc38 m/min (n600 min
-1
)
Feed
fz0.04 mm/tooth (vf60 mm/min)
Depth of Cut
ap30 mm, ae5-20 mm
Coolant
Emulsion

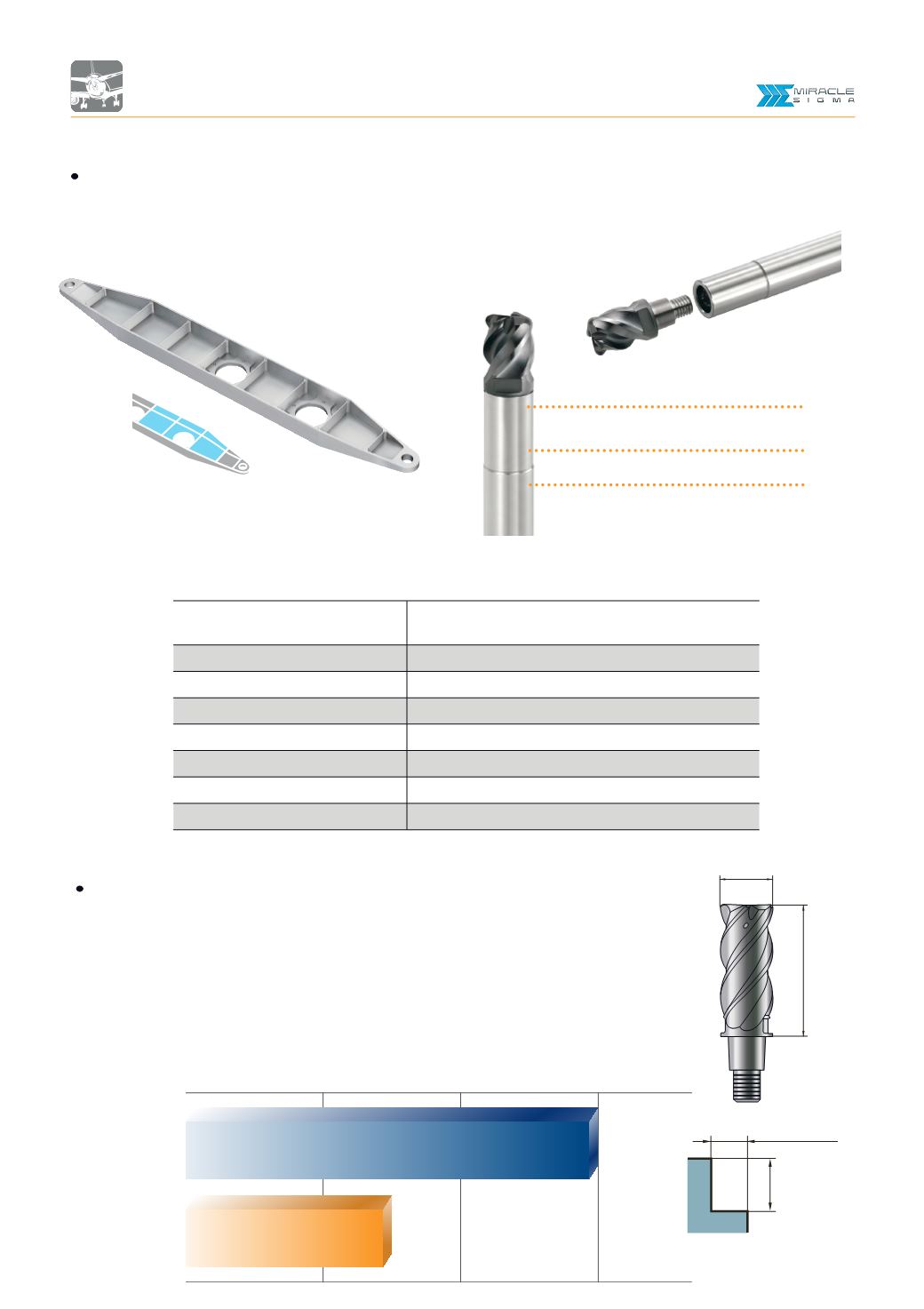

Finish Pocket Milling
LANDING GEAR
Work Material [Titanium Alloy]
Key Point on Machining
When finish machining titanium alloy, chipping and abnormal damage of
the cutting edge can occur and vibration is easily generated. Use of a tool
which is designed for vibration control is effective. The iMX exchangeable
head end mill series with variable pitch geometry prevents vibration and
improves chip discharge performance. This achieves a stability when
machining applications that require a long tool overhang.
Application Example
Achieved double tool life and stable machining without vibration.
Conventional
Tool life (min)
High Precision
High Rigidity
High Efficiency
iMX
Exchangeable Head End Mills
