12
VFX
VFX
0
50
100
150
Holder
VFX6-063A04A060R
Insert (Grade)
XNMU190912R-LS (MP9130)
Work Material
Ti-6Al-4V
Cutting Speed
vc55 m/min (n280 min
-1
)
Feed
fz0.12 mm/tooth (vf135 mm/min)
Depth of Cut
ap25-60 mm, ae10-45 mm
Coolant
Emulsion (10 MPa)
Cutting force

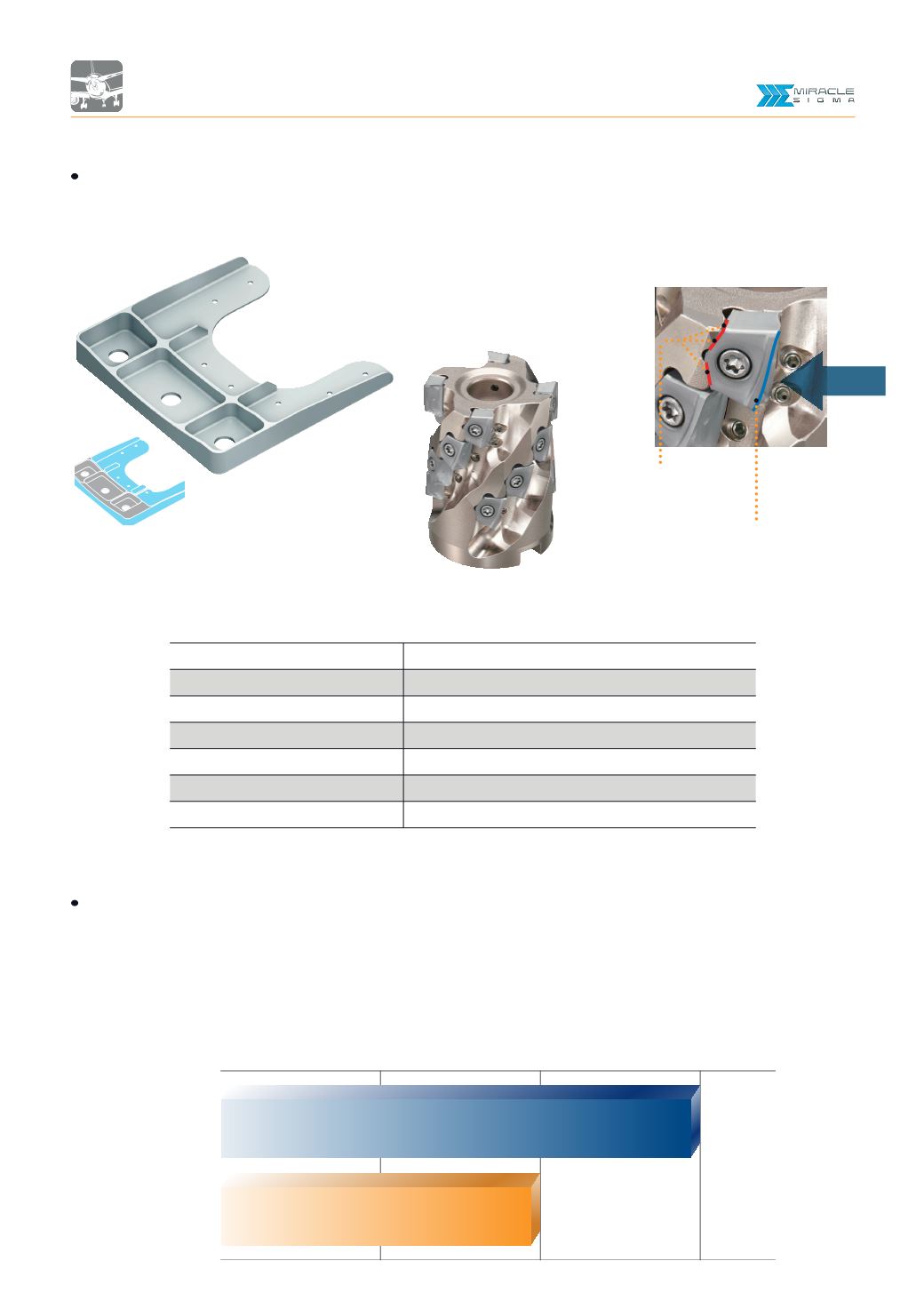

AIR FRAME
Work Material [Titanium Alloy]
Key Point on Machining
When rough machining titanium alloy, chipping and abnormal damage of the cutting edge easily
occurs if low rigidity tools are used. Using high rigidity tools and low cutting resistance inserts are
recommended. Stable machining is possible because the VFX series has a high rigidity design and
the cutting resistance is lower due to the convex curve cutting edge and the V-formation of the
clamping face respectively.
Application Example
Achieved 150% efficiency by combining effective geometry with high pressure internal through
coolant.
Conventional
Arranging the
inserts vertically
Convex curve
cutting edge
V formation of the
clamping face
Efficiency (%)
Side Milling
Rough Pocket Milling
