11
iMX
0
50
100
150

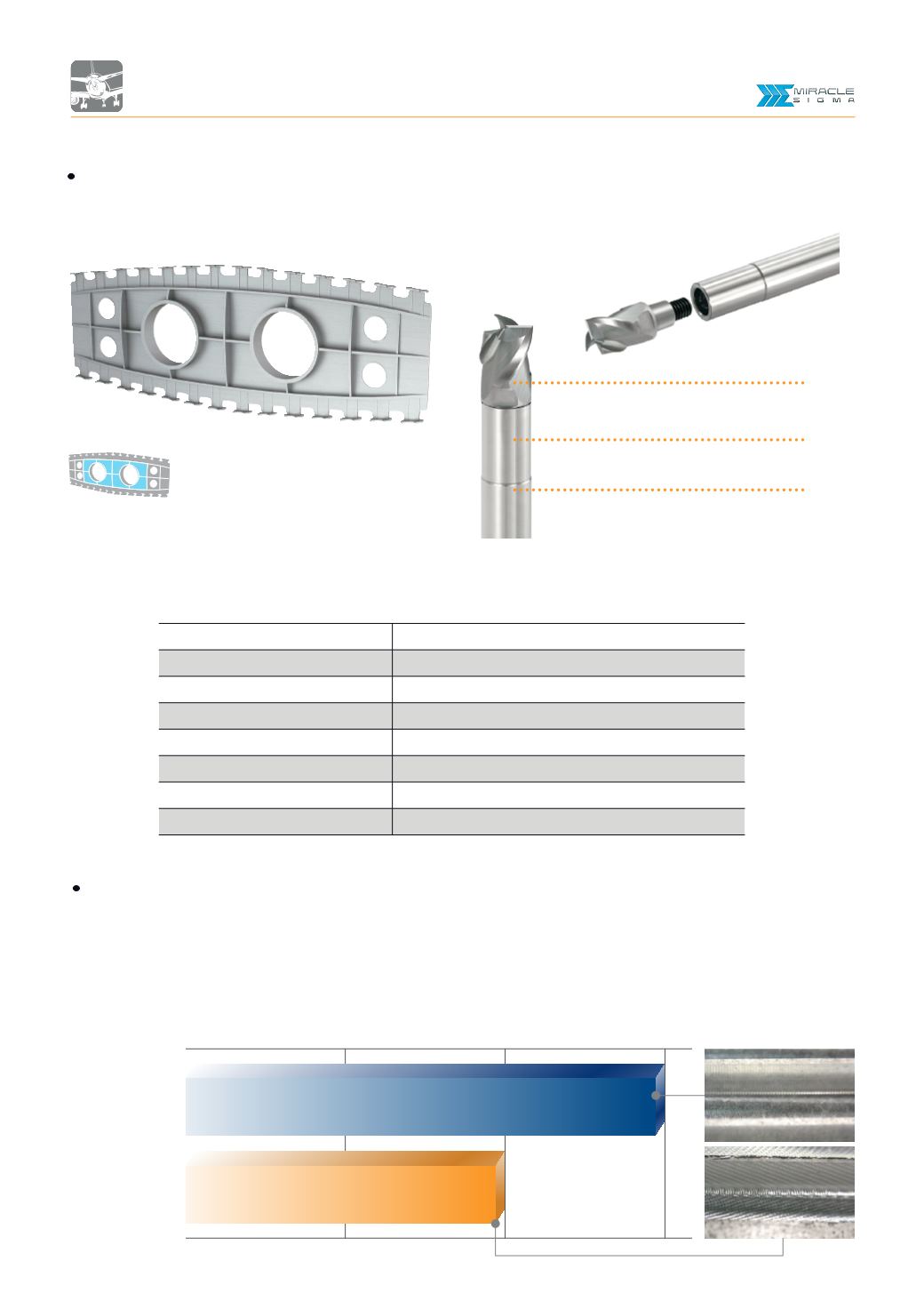

Face Milling
Pocket Milling
AIR FRAME
Work Material [Aluminium Alloy]
High Precision
High Rigidity
High Efficiency
iMX
Exchangeable Head End Mills
Head (Grade)
IMX10S3A10008 (ET2020)
Holder
IMX10-U10N014L070C
Overhang length
35 mm
Work Material
A7075
Cutting Speed
vc408 m/min (n13000 min
-1
)
Feed
fz0.12 mm/tooth (vf4680 mm/min)
Depth of Cut
ap5 mm, ae10 mm
Coolant
Emulsion
Key Point on Machining
Milling of rib type components involves removing large volumes of stock material. Therefore
highly efficient machining at high speeds is required to reduce costs. The iMX exchangeable
head end mill geometry for machining aluminium alloy prevents welding due to a large rake
angle and with a mirror finish surface treatment on the flutes.
Application Example
Solid carbide holder enables stable, deep slot machining with vastly reduced vibration.
Conventional
Bottom face
Bottom face
Wall surface
Wall surface
Efficiency (%)
